Intratumoural injection of absolute alcohol in carcinoma of gastroesophageal junction for palliation of dysphagia

Vishnu Prasad Nelamangala Ramakrishnaiah, J Ramkumar and Dinker Pai

Department of Surgery, Jawaharlal Institute of Postgraduate Medical Education and Research (JIPMER), Puducherry 605006, India

Correspondence to: NR Vishnu Prasad. Email: vprasad285@gmail.com

Abstract

Background: Ethanol-induced tumour necrosis (ETN) is a simple, readily available palliative treatment for patients with inoperable carcinoma of the oesophagus with poor performance status. In India, capital outlay needed for stenting or laser therapy is out of reach. Hence, we took up this study to calculate the effect of intratumoral injection of absolute alcohol in palliation of dysphagia due to carcinoma of the oesophagogastric junction and to monitor the improvement in quality of life (QOL).

Methods: A total of 16 patients with a mean age of 56.2 ± 7.5 years with dysphagia due to unresectable malignant oesophageal strictures involving the oesophagogastric junction were included in the study. Six to ten cubic centimetres of absolute alcohol in 1 cc aliquots was injected circumferentially into the tumour at the point of luminal obstruction using disposable sclerosing needles (23G). During each follow up dysphagia grade, QOL score and complications, if any, were noted.

Results: The mean alcohol injected per session was 6.9 ± 1.8 cc. The mean dysphagia grade improved from 5.5 ± 0.5 to 2.5 ± 1.1 before and after alcohol injection, respectively (p < 0.001). The time taken for recurrence of dysphagia ranged from 14 to 80 days with a median of 28 days. The mean QOL score assessed by modified EORTC questionnaire improved from a mean of 63.6 ± 6.9 to 92.6 ± 13.9 (p < 0.001). The dysphagia free survival ranged from 23 to 175 days with a mean of 71.2 days. Complications included oesophageal perforation in one patient and death in one patient.

Conclusion: The endoscopic intratumoral injection of absolute alcohol significantly improves dysphagia and QOL. It is inexpensive and easy to perform.

Keywords: oesophageal cancer, palliative therapy, endoluminal therapy.

Copyright: © the authors; licensee ecancermedicalscience. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Background

The majority of patients with oesophageal carcinoma have inoperable disease, and without treatment, the ability to swallow deteriorates rapidly, with a dramatic effect on quality of life (QOL) [1]. The predominant symptom is progressive dysphagia, which occurs once there has been at least a 60% reduction in lumen diameter [2, 3]. Thus, the primary therapeutic objective is palliation of dysphagia with minimum morbidity, mortality, or need for hospitalisation.

Surgical palliation is rarely indicated since external beam radiation and brachythearpy, endoscopic laser therapy or argon plasma coagulation, bougienage, and stent implantation are rival palliative procedures with comparable survival time and lower morbidity [4]. Endoscopic therapy is useful for patients with poor performance status, in whom other treatments have failed.

Ethanol-induced tumour necrosis (ETN) is simple, cheap and readily available. Uses of intratumoral injection of absolute alcohol for palliation of dysphagia have been reported. However, to the best of our knowledge, there have been no such reports from India. In India, the capital outlay needed for stenting or laser therapies is out of reach. The cost of an antireflux stent for palliation of carcinoma of the gastroesophageal junction is very high and was not available, but other methods of palliation of dysphagia for growth in the upper, middle, and lower third of oesophagus such as chemoradiotherapy, feeding jejunostomy, and stenting were available and were being used in our institute. Hence, we initiated a study to evaluate the effect of intratumoral injection of absolute alcohol in palliation of dysphagia due to carcinoma of the oesophagogastric junction and to observe the improvement in QOL.

Methods

This was a prospective clinical interventional study conducted at the Jawaharlal Institute of Postgraduate Medical Education and Research (JIPMER) between September 2004 and June 2006. The study was approved by the Institute Ethics Committee. All patients with dysphagia due to unresectable malignant oesophageal strictures involving oesophagogastric junction, not suitable for other methods of palliation like chemoradiotherapy or non-availability of other methods of palliation like antireflux stents or laser or argon plasma, were included in the study. Informed consent was obtained from these patients. A detailed history was elicited regarding dysphagia, regurgitation of feeds, QOL, and other symptoms. Dysphagia was graded using Modified Takita’s functional grades of dysphagia [5]. QOL was assessed by modified European Organisation for Research and Treatment of Cancer (EORTC) QLQ C30 questionnaire [6]. This consists of 30 questions based on physical symptoms, emotional interactions, intellectual activity, economic independence, and self- perception of wellness. Each question was scored on a scale of 1 (‘very poor’) to 5 (‘very good’). Patients were assessed clinically and with Barium swallow, abdominal ultrasonogram, and chest X-ray. CT scan was done in nine patients. All patients were subjected to upper gastrointestinal endoscopy (UGIE) and biopsy was taken to confirm malignancy. Six patients underwent explorative laparotomy and were found to be inoperable.

UGIE was done by EPM-3400, PENTAX endoscope (PENTAX Corporation, Tokyo Japan) and the following parameters were noted: the site and length of lesion, gross appearance of tumour, and degree of circumferential involvement, stomach, and duodenum whenever possible.

After noting the findings, an endoscope was passed up to the point of obstruction. Six to ten cubic centimetres of absolute alcohol in 1 cc aliquots was injected circumferentially into the tumour at this point using disposable sclerosing needles (23G) manufactured by MTW endoskopie company. These needles were again reused after sterilisation. The patients were then kept under observation for the next 6 h, and a chest X-ray was then taken. If there was no evidence of perforation, patients were allowed to take a fluid diet and advised to start solids as tolerated, starting the next day. Any adverse effects of the injection were noted after each session. All patients were discharged, unless there were complications, with proper dietary advice.

Patients were followed up weekly. During each follow up, dysphagia grade and QOL score were noted, as mentioned earlier. UGIE was repeated and reinjections were performed if required. Reinjections were stopped after a maximum of four sessions if there was no improvement in dysphagia or if the patient developed complications. If the dysphagia improved, the injection sessions were continued until patients were able to swallow semisolid food (dysphagia grade 3). After this, patients were reviewed every four weeks or earlier, if dysphagia worsened. The dysphagia score and QOL score before and after alcohol injection, the number of sessions for the endoscope to enter into stomach and the number of sessions required for primary dysphagia relief, and the mean interval for the recurrence of dysphagia were analysed. Statistical analysis was done using Statistical Package for the Social Sciences version 13. A non-parametric test like Friedman Test and Wilcoxon Signed Ranks Test were used for comparing the dysphagia grade and QOL before and after absolute alcohol injection; P value <5% was considered significant.

Results

A total of 16 consecutive patients with dysphagia due to unresectable malignant oesophageal strictures involving oesophagogastric junction were included in the study. The mean age of the 16 patients was 56.2 ± 7.5 years (Figure 1). Of the 16 patients, one was a female. Of these patients, 75% were in their sixth or seventh decades. Thirteen patients were diagnosed as having adenocarcinoma and the rest as squamous cell carcinoma. Prior to injection, 11 patients had grade 5 dysphagia; four patients had grade 6, and one patient had grade 4 dysphagia. The mean dysphagia grade was 5.2 ± 0.5 before alcohol injection. (Figure 2).

The total number of alcohol injection sessions ranged from one to seven, of which seven patients had two sessions. The mean number of sessions was 2.9 ± 1.7. Dysphagia relief was observed in 14 patients; the number of sessions required primarily for tolerating semisolid ranged from one three sessions with a mean of 1.3 ± 0.6 sessions. Dysphagia was not relieved in two patients, in one of whom, dysphagia was not relieved even after four sessions and the other died on the third day following the first injection. Following dysphagia relief, the patients were followed up, and once dysphagia worsened, reinjections were done. The number of reinjection sessions ranged from one to six with a mean of 1.7 ± 1.8.

The mean interval between the last primary injection sessions to the first secondary injection session, i.e., the time taken for the recurrence of dysphagia ranged from 14 to 180 days with a mean of 31.3 ± 18.6 days and with a median of 28 days. During the initial endoscopy, the endoscope could not traverse the growth in 15/16 patients. During the follow up period, among the 14 patients, the endoscope could pass across the stricture and enter the stomach in nine patients. There was correlation between endoscope traversing the stricture and improvement in dysphagia. The mean number of sessions required for the endoscope to traverse the stricture was 1.5 ± 1.0. The mean dysphagia score when the endoscope traversed the stricture was 3 ± 1.1.

During the follow up period, two patients had swallowing difficulties despite the clearance of luminal disease after the fourth session, but they were able to tolerate solids better than fluids and were able to swallow better in erect posture. The volume of alcohol injected per session was in the range of 3 to 10 cc and the mean volume of alcohol injected per session was 6.98 ± 1.8 cc.

The dysphagia grade before and the best grade after alcohol injection are shown in Figure 2. Following injections, the dysphagia grade, in seven patients improved to grade 3, in four patients to grade 1, and in three patients to grade 2. One patient following injection died on the third day and dysphagia grade was four, in another patient there was no improvement of dysphagia even after four sessions, though initially, following first session dysphagia grade improved form grade 6 to 5. There was statistically significant improvement in the mean dysphagia grade from 5.2 ± 0.5 to 2.5 ± 1.1 before and after alcohol injection, respectively (p < 0.0001). There was statistically significant improvement in the dysphagia before and after injections, in each session until the fourth session after which there was no further improvement (Figure 3).

All patients had QOL score between 50 and 75. QOL scores had improved following injection and score was between 90 and 110 in ten patients, between 70 to 90 in four patients, and in two patients it was 60 to 70. There was statistically significant improvement in the mean QOL score from 63.6 ± 6.9 to 92.6 ± 13 before and after alcohol injection, respectively (p < 0.0001) (Figure 4).

Thirteen patients had chest pain during injections. None of them had fever, bleeding, or reflux from injections. One patient had oesophageal perforation which was diagnosed one week following third session of injection. One patient died on third day following first session of injection (Figure 5).

According to our institutional purchase price, the cost of the product required per session which included injection sclerotherapy needles which were reused after sterilisation, was Rs. 240/-. The survival period ranged from 3 to 220 days and the mean duration of survival was 84.3 ± 67.7 days. The dysphagia free survival ranged from 23 to 175 days with a mean of 71.2 ± 62.7 days.

Figure 1. Age and sex distribution of the 16 patients with gastroesophageal junction carcinomas.

Figure 2. Dysphagia grade of 16 patients before treatment and the best grade achieved after alcohol.

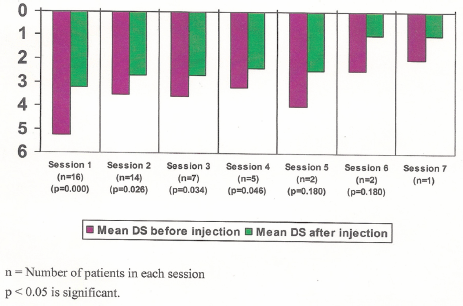

Figure 3. Mean dysphagia score before and after alcohol injection for each session.

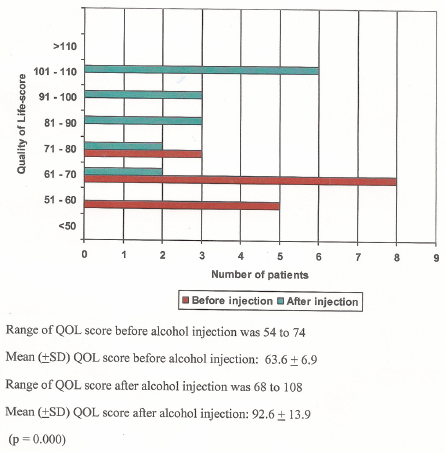

Figure 4. QOL score before and after alcohol injection.

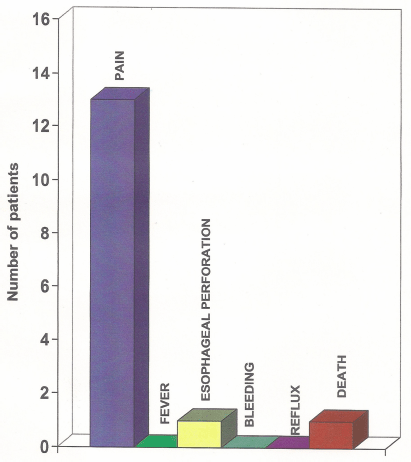

Figure 5. Morbidity and mortality.

Discussion

In most patients with carcinoma of the oesophagus and gastric cardia, the disease is too advanced at presentation for there to be any prospect of cure [7]. Which therapy is chosen for the palliation of patients with unresectable oesophageal cancer depends on the symptoms requiring attention, the technology available, physician experience and training, and patient desires [8]. Identifying the most appropriate method of nutritional support for a patient with oesophageal cancer must be individualised [9].

Pilot studies of alcohol injection appeared in the literature approximately 20 years ago, and few uncontrolled series performed since then have documented high success rates. However, to the best of our knowledge, there has been no such study from our country. In India, a developing country, capital outlay needed for either stenting or laser therapies which are well established palliative techniques are out of reach in many centres. The patients in our study were assessed by a dedicated team of surgeons and radiotherapists and were found to be unfit for surgery and other modalities of palliation.

The mean age (56.2 ± 7.5 years) of the 16 patients was lower in our study when compared with other studies as in Nwokolo et al [10]. In Bown’s study where laser palliation was used, the mean age was 71.6 years [11]. In Sabharwal’s study where stenting was used, the age was 71.6 years [12]. However, when compared with Maroju’s study conducted in our institute where they had used stenting for palliation, the mean age was 57 ± 11 years and was similar to our study [13].

Prior to injection, the mean dysphagia grade was 5.2 ± 0.5, i.e., patients had difficulty in tolerating liquids. In Monga’s study where laser palliation was used, the mean dysphagia grade at presentation was 3.33 (Bowns grading) and was similar to our study [14]. It was also similar to other studies of ETN, as shown in Table 1. In Maroju study from our institute where they had used stenting for palliation and the presenting score ranged from 4 to 6 with a median of 4 (Takita’s scoring) [13] and was similar to our study. Following injections, the dysphagia grade had improved in 14 patients. Improvement in dysphagia was seen two to three days following injections. The improvement was similar to other studies of ETN, as shown in Table 1.

In our study, the number of sessions required for the relief of primary dysphagia ranged from one to three sessions with a mean of 1.3 sessions and median of one session. This was similar to Nwokolo’s study [10] where the number of sessions to reach the best dysphagia grade ranged from one to three with a median of one session. The time taken for the recurrence of dysphagia ranged from 14 to 80 days with a median of 28 days. This was similar to other studies of ETN, as shown in table above. During the secondary injection sessions, dysphagia improved with single session of alcohol injection. With self expanding metallic stents relief of dysphagia is immediate with a single session and patency is maintained unless complications develops [20]. Laser treatment usually require between two and four sessions to achieve initial dysphagia palliation, with further treatment every four to eight weeks following this [21]. The amount of alcohol injected per session was in the range of 3 to 10 cc and the mean volume of alcohol injected per session was 6.9 ± 1.8 cc and with a median of 7 cc. In the study conducted by Chung et al, the mean volume injected per session was 7.8 mL and in Nwokolo’s study it ranged from 1.5 to 29 cc with a median of 10 cc. In the study conducted by Chung et al [18] and Nwokolo et al [10], when the endoscope did not traverse the stricture, limited dilatation was done so as to permit the endoscope to traverse the stricture. If the lumen was totally occluded and the guide wire could not be passed, the proximal occluding part of the tumour was injected circumferentially. In Nwokolo’s study, the improvement in dysphagia in patients where dilatations was done prior to injection was similar to patients in whom only alcohol injections were done suggesting that the improvement was not because of dilatation. Carazzone et al in their study had one oesophageal perforation during the preliminary dilatation before the second session of alcohol injection [22].

In our study, during the initial endoscopy, the endoscope could not traverse the growth in 15/16 patients. Dilatations were not attempted in any of these patients, and alcohol was injected in the proximal occluding part of the tumour. In our study, there was significant improvement in mean dysphagia score following injection. During the follow up period among the 14 patients, the endoscope could pass across the stricture and enter into the stomach in nine patients. There was correlation between the endoscope traversing the stricture and patient improvement in dysphagia. Hence, we feel the injections can be done without dilatations, thereby avoiding the procedural complications related to dilatations like perforation.

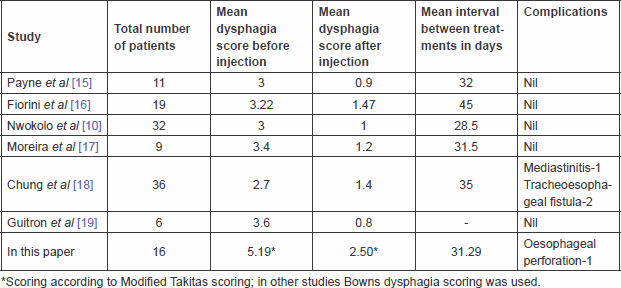

Table 1. Studies on palliation of dysphagia by ethanol induced tumour necrosis.

During the follow up period, two patients had swallowing difficulties despite the clearance of luminal disease after fourth session but they were able to tolerate solids better than fluids and they were able to swallow better in erect posture. This might have resulted from motility disturbances secondary to muscle infiltration by tumour.

The ultimate goal of palliation is to improve the QOL. In our study, there was statistically significant improvement in the mean QOL score from 63.6 ± −6.9 to 92.6 ± 13.9 before and after alcohol injection, respectively. This parameter was not assessed in other alcohol injection studies. Our finding was similar to other studies which have demonstrated improved QOL in patients with inoperable oesophageal cancer following relief of dysphagia [23]. In the study conducted by Maroju Nanda Kishore et al in our institute where they had used stenting for palliation, Median QOL score was 72 (62–94) before stenting, increased to 107 (80–133) after the procedure [13]. Louis’s study, where laser was compared with intubation for palliation, showed QOL in both the groups had a negative correlation with the severity of dysphagia [7].

Thirteen patients had chest pain during injection; one patient had oesophageal perforation, this patient subsequently underwent feeding jejunostomy but got himself discharged against medical advice and was lost to follow up. There was no incidence of reflux in our study. One patient died on the third post injection day; though leak was suspected, it was not proven. The exact cause of death in this patient could not be established. Sudden cardiac death was another possibility thought of. Carazzone et al, in their study comparing ETN versus laser therapy, showed similar dysphagia improvement, and dysphagia-free intervals between treatments, but 78% of ETN patients experienced distressing levels of pain and one oesophageal perforation occurred during the preliminary dilatation before the second session of alcohol injection [22]. Chung et al, in their study, had complications that included mediastinitis in 1/36 patients and tracheoesophageal fistulas in 2/36 patients. There were no significant complications in other alcohol injection studies. With self-expandable metallic stents Song et al reported reflux in 9 (19%) out of 47 patients [20]. Non-refluxing stents have been employed to avoid these problems. Perforation accounts for the majority of significant early morbidity in laser treatments and occurs in 1–6% of patients [7].

In our study, the survival period after the first session of injection ranged from 3 to 220 days and the mean duration of survival was 84.3 ± 67.7 days. In Chung’s study [18], where alcohol injections were done the mean survival was 82 days. In Nwokolo’s study[10], the median survival after first session was 93 days. Louis et al showed that the mean survival in the group following laser therapy was 6.1 months and for the endoscopic intubation group was 5.1 months [7]. A recent randomised study by Dallal and colleagues comparing thermal ablative palliation with SEMS reported significantly longer survival in patients who underwent ablative therapies; 125 days versus 68 days, respectively (p < 0.005), with no explanation for this finding [24]. In a prospective randomised trial, Shah et al have reported improved survival, dysphagia, time between treatment, and time for stent requirement in those patients getting ETN and external beam radiation compared with those receiving only ETN [25]. By looking at the results of brachytherapy [26]. We have plans to compare ETN with endoluminal brachytherapy with ETN alone prospectively.

According to our institutional purchase price, the cost of the procedure per session which included the injection sclerotherapy needles which were reused after sterilisation was Rs. 240/-. If the needles had been used only once, then the cost per session would have been Rs. 1800/-. The cost of stenting using SEMS, works out to be Rs. 40,000/-.

A variety of approaches are available for the palliation of malignant dysphagia due to oesophageal cancer. Patients who are debilitated, poor surgical candidates or have recurrence of disease after surgery should be considered for endoscopic palliation [25–28]. Alcohol injection, laser therapy, photodynamic therapy, and argon plasma coagulation can be used primarily as debulking modalities to attempt reestablish oesophageal luminal patency [26].

In conclusion, endoscopic intramural injection of absolute alcohol significantly improves dysphagia and QOL. It requires no additional investment for most endoscopy units, is cheap, requires no hospitalisation, and is easy to perform. It provides effective palliation with complications comparable with other forms of palliation. If necessary, it can be repeated for more lasting palliations. It can be used for the oesophageal growth at any site as long as a reasonable view of the tumour is possible. With relief of dysphagia lasting a month, ETN has all the hallmarks of a good palliative technique.

Conflicts of interest

The authors have no conflicts of interest to declare.

References

1. Muller JM et al (1990) Surgical therapy of oesophageal carcinoma [review] Br J Surg 77 845–57. DOI: 10.1002/bjs.1800770804

2. Griffith JL, Davis JT (1980) A twenty-year experience with surgical management of carcinoma of the esophagus and gastric cardia Thorac Cardiovasc Surg 79 447–52.

3. Watkinson AF et al (1995) Esophageal carcinoma: initial results of palliative treatment with covered self-expanding endoprostheses Radiology 195 821–7. PMID: 7538682

4. Lambert R (1994) Palliation of carcinoma of the esophagus: is there hope for cure? Am J Gastroenterol 89 S27–40. PMID: 7519392

5. Peters JH, Meester TR, Stein HJ (1995) Surgical therapy for cancer of the esophagus and cardia The Esophagus 2nd edn, ed OC Donald (New York: Little, Brown and Company) pp. 293–335.

6. Blazeby JM et al (1996) Development of an EORTC module to be used in quality of life assessment for patients with esophageal cancer Eur J Cancer 32A(11) 1912–17. DOI: 10.1016/0959-8049(96)00199-2 PMID: 8943674

7. Louis et al (1991) A prospective comparison of laser therapy and intubation in endoscopic palliation for malignant dysphagia Gastroenterology 100 1303–10.

8. Freeman RK, Ascioti AJ, Mahidhara RJ (2012) Palliative therapy for patients with unresectable esophageal carcinoma Surg Clin North Am 92(5) 1337–51. DOI: 10.1016/j.suc.2012.07.004 PMID: 23026285

9. Yoon HY et al (2012) Role of photodynamic therapy in the palliation of obstructing esophageal cancer Korean J Intern Med 27(3) 278–84. DOI: 10.3904/kjim.2012.27.3.278 PMID: 23019392 PMCID: 3443720

10. Nwokolo CU, et al (1994) Palliation of malignant dysphagia by ethanol induced tumour necrosis Gut 35(3) 299–303. DOI: 10.1136/gut.35.3.299 PMID: 7512062 PMCID: 1374578

11. Bown SG et al (2003) Endoscopic laser palliation for advanced malignant dysphagia Gut 52 922–26.

12. Sabharwal T et al (2003) A randomized prospective comparison of the Flamingo Wallstent and Ultraflex stent for palliation of dysphagia associated with the lower third esophageal carcinoma Gut 52 922–926. DOI: 10.1136/gut.52.7.922 PMID: 12801944 PMCID: 1773700

13. Maroju Nanda Kishore et al (2006) Improvement in dysphagia and quality of life with self-expanding metallic stents in malignant esophageal strictures Indian J Gastroenterol 25 62–5. PMID: 16763332

14. Monga A, Kumar D, Jain SK (2002) Laser palliation of esophageal carcinoma J Assoc Physicians India 50 1017–21. PMID: 12421022

15. Payne-James JJ et al (1990) Use of ethanol-induced tumour necrosis to palliate dysphagia in patients with esophagogastric cancer Gastrointest Endosc 36(1) 43–6. DOI: 10.1016/S0016-5107(90)70921-2 PMID: 1690158

16. Fiorini A, Roca E, Capizzano M (1992) Endoscopic recanalisation with alcohol in the treatment of dysphagia of neoplastic origin Acta Gastroenterol Latinoam (2) 197–9.

17. Moriera LS et al (1994) The use of ethanol injection under endoscopic control to palliate dysphagia caused by esophagogastric cancer Endoscopy 26(3) 311–14. DOI: 10.1055/s-2007-1008974

18. Chung SC et al (1994) Endoscopy 26(3) 275–7. DOI: 10.1055/s-2007-1008966 PMID: 7521294

19. Guitron A et al (1996) Rev Gastroenterol Mex 61(3) 208–11. PMID: 9102742

20. Song HY et al (1994) Covered, expandable esophageal metallic stent tubes: experiences in 119 patients Radiology 193 689–95. PMID: 7526414

21. Mason R (1996) Palliation of malignant dysphagia: an alternative to surgery Ann R Coll Surg Engl 78 457–62. PMID: 8881732 PMCID: 2502938

22. Carazzone A et al (1999) Endoscopic palliation of esophageal cancer: results of a prospective comparison of Nd:YAG laser and ethanol injection Eur J Surg 165 351–6. DOI: 10.1080/110241599750006893 PMID: 10365837

23. Loizou et al (1992) A prospective assessment of quality of life after endoscopic intubation and laser therapy for malignant dysphagia Cancer 70(2) 386–91. PMID: 1377593

24. Dallal HJ et al (2001) A randomized trial of thermal ablative therapy versus expandable metal stents in the palliative treatment of patients with esophageal carcinoma Gastrointest Endosc 54 549–57. DOI: 10.1067/mge.2001.118947 PMID: 11677469

25. Ashit MS et al (2009) A prospective randomised controlled trial of ethanol-induced tumour necrosis (Etn) with or without adjuvant external beam radiotherapy in the palliation of malignant dysphagia Gastroenterology 5(Suppl 1) A455.

26. Wong S, Hennequin C, Quero L (2013) [Brachytherapy for oesophageal cancer] [Article in French] Cancer Radiother 17(2) 159–61. DOI: 10.1016/j.canrad.2013.03.003 PMID: 23603254

27. Javle M et al (2006) Palliation of malignant dysphagia in esophageal cancer: a literature-based review J Support Oncol 4(8) 365–73, 379. PMID: 17004508

28. Adler DG, Baron TH (2001) Endoscopic palliation of malignant dysphagia Mayo Clin Proc 76(7) 731–8. DOI: 10.4065/76.7.731 PMID: 11444406
